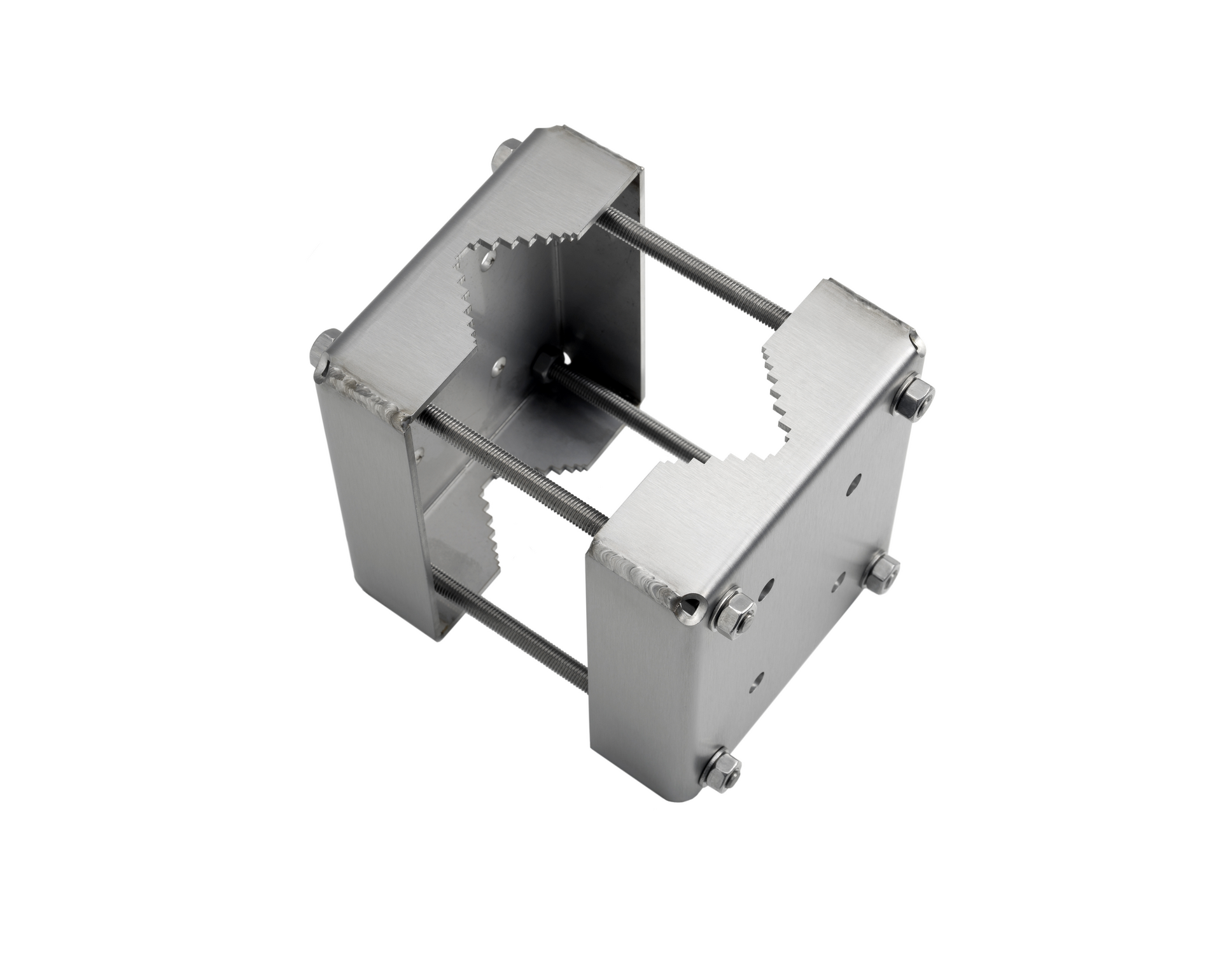

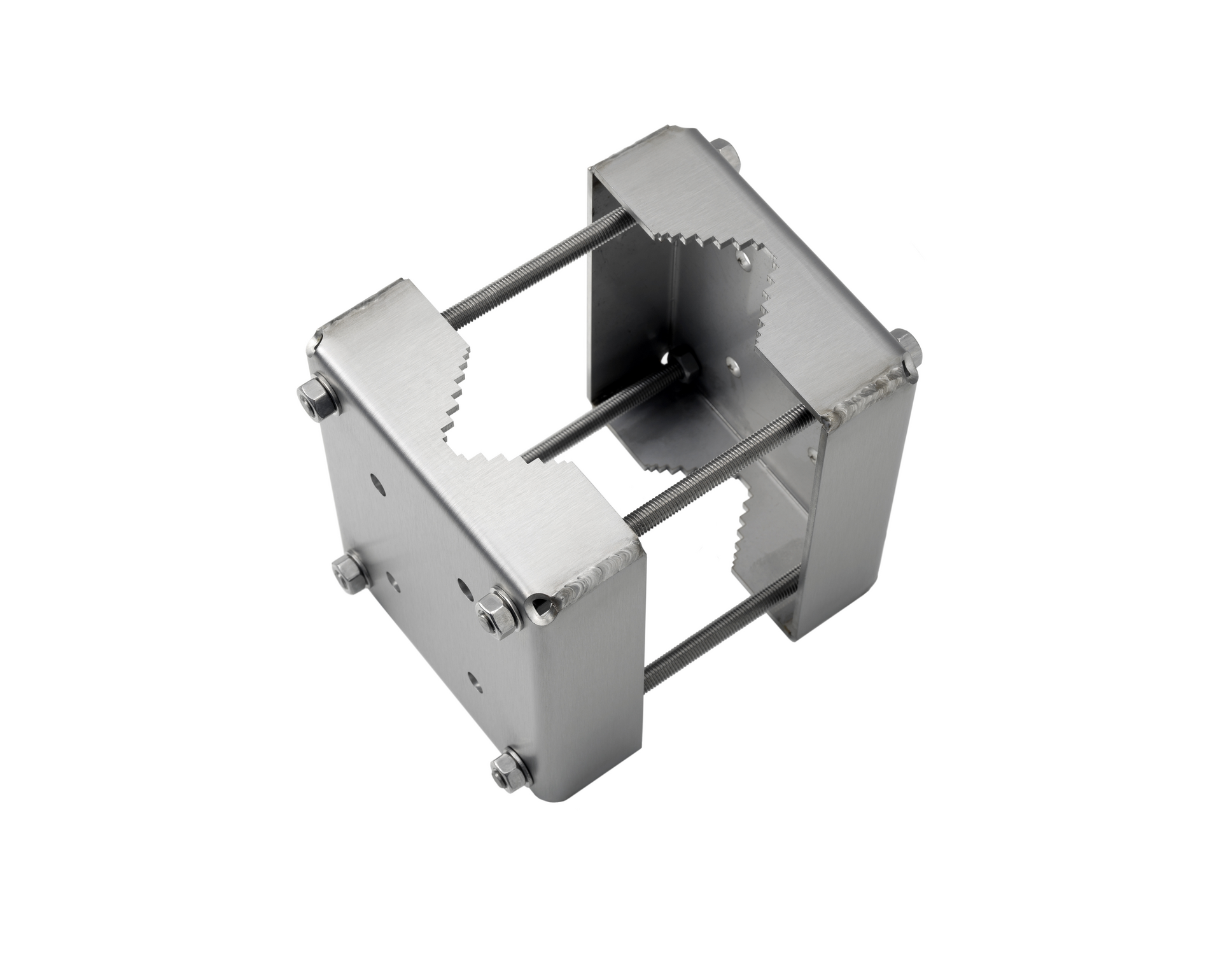

With the pole mounting bracket all cameras of our ExCam Series with the modelkey T08-VA0.x and T08-VA1.x, T08-VA2.x, as well as the cameras of the RoughCam Series T10-VA0.x, T10-VA1.x and T10-VA2.x can easily be mounted on poles with diameters between 50 mm and 105 mm. The pole mount bracket is made of stainless steel and for this resistant to corrosion. Furthermore the it is sturdy and can be perfectly combined with our wall mount brackets. It is perfectly suitable for industrial areas, for onshore, offshore and marine applications.

Features.

  • Made of stainless steel (1.4404)
  • Resistant to corrosion
  • Extremely sturdy
  • Light, easy mounting
  • Compatible with cameras of the ExCam Series T08-VA0.x, T08-VA1.x, T08-VA2.x and the RoughCam Series T10-VA0.x, T10-VA1.x, T10-VA2.x

Compatible products:

WMB-VA0.x/VA1.x, WMB-VA2.x

Mechanical Characteristics:

Material: Stainless Steel (1.4404)
Weight: 3.80 kg
Dimensions: 160x180x210(max.) mm
Point load: 50 kg

Included Accessories:

Mounting material

Optional Accessories:

Wall Mount Bracket WMB-VA0.x/VA1.x/VA2.x
