Mounting accessory

All accessories have been thoroughly tested with regard to their use in industrial zones, reflecting the highest quality standards. Accessories for explosion risk zones are in accordance with the current norms; DIN EN 60079-0, -14, Directive 2014/34/EU, as well as the norms for the applicable explosion protection. Our accessories are compatible with cameras of the ExCam Series as well as cameras from the RoughCam Series.

Our Wall Mount Brackets

Wall Mount Bracket WMB-VA0.x/VA1.x

For Series T08/T10-VA0.x/VA1.x:
ExCam IPP1275, liteServer Ex.micro,
ExCam IPP1280, ExCam XI80,
ExCam miniTube, ExCam e.Vario, a.o.

Wall Mount Bracket WMB-VA2.0-2.2

For Series T08/T10-VA2.0-VA2.2:
- ExCam IPM1137
- ExCam IPM2036
- ExCam IPQ1715

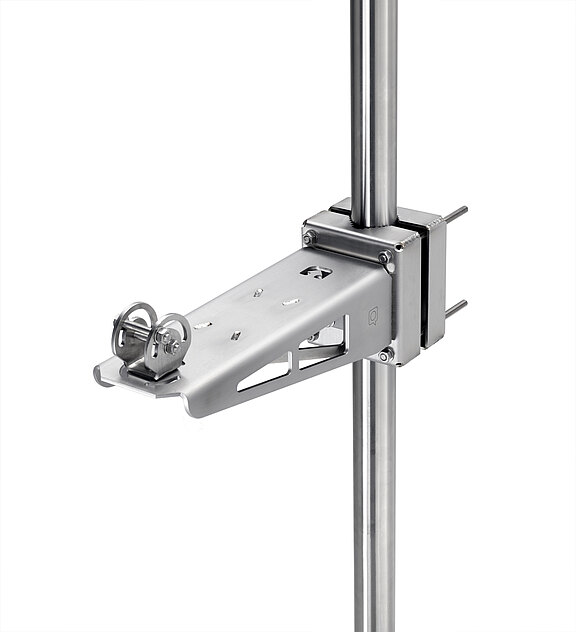

Wall Mount Bracket WMB-VA2.3

For the Series T08/T10-VA2.3:
- ExCam IPP1387, ExCam IPQ1656
- ExCam IPQ1785
- ExCam IPM1137-LE

Wall Mount WMB-TNXCD/VA4

For the ExCam Series T08-TNXCD/VA4:
- ExCam IPP3827
- ExCam IPP5655 MKII
- ExCam IPQ6075

Our Wall Mount Brackets are made of stainless steel and therefore they are corrosion resistant. Furthermore they are sturdy and vibration tested. The Wall Mount Bracket is designed for easy mounting of fixed network cameras. Thanks to the stainless steel mounting bracket the chosen camera can be adjusted in various tilt angles.

Our Weather Protection Roofs

Weather Protection Roof WPR-VA0.1

For cameras T08/T10-VA0.1:
- ExCam IPP1275, ExCam IPP1280,
- liteServer Ex.micro
- ExCam miniTube

Weather protection Roof WPR-VA0.4

For cameras T08/T10-VA0.4:
- ExCam XI80, ExCam XI410,
- ExCam microTube IP

Weather Protection Roof WPR-VA1.x

For cameras T08/T10-VA1.x:
- ExCam IPM3016
- ExCam e.Vario, ExCam miniTube IP

Weather Protection Roof WPR-VA2.0

For cameras with model-key T08/T10-VA2.0:
- ExCam IPM2036

Weather Protection Roof WPR-VA2.1

For cameras with model-key T08/T10-VA2.1:
- ExCam IPM1137

Weather Protection Roof WPR-VA2.2

For cameras with model-key T08/T10-VA2.2:
- ExCam IPQ1715
- ExCam IPM1137-LE

Weather Protection Roof WPR-VA2.3

For cameras with model-key T08/T10-VA2.3:
- ExCam IPP1387, ExCam IPQ1656
- ExCam IPQ1785, ExCam IPM1137

Our Weather Protection Roofs are made of stainless steel and therefore they are corrosion resistant. They protect the camera from direct splash water. Furthermore they dispose of mounting holes with a spacing of 5 mm in order to allow adjusting the hood's position to perfectly meet the selected angle of view.
