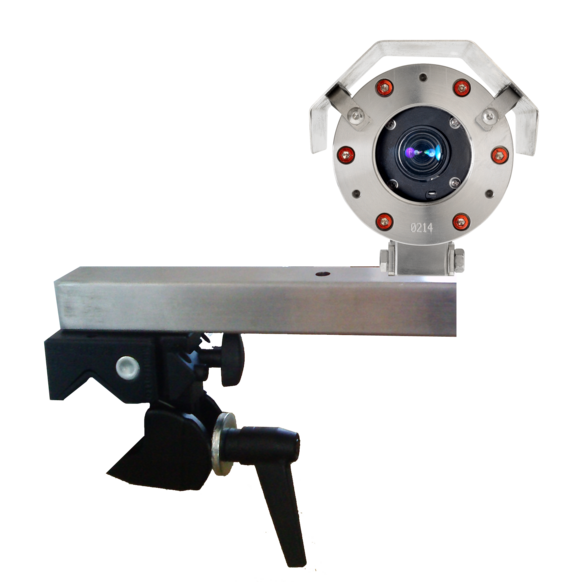

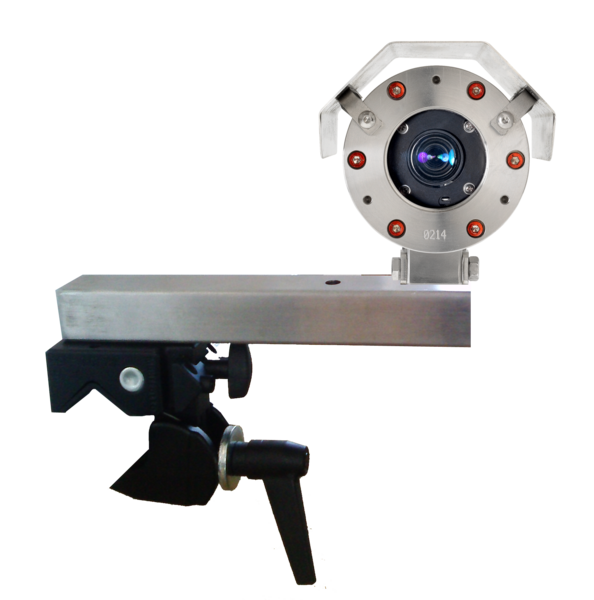

With the SuperClamp, a camera from our ExCam/RoughCam series with the model keys T08/T10-VA0.x-1.x and T08/T10-VA2.0-2.2 can be easily attached to tubes, plates or support elements.
Features.
- Made of stainless steel (AISI 316L/1.4404), Aluminum
- Resistant to corrosion
- Light, easy mounting
- Compatible with cameras of the ExCam Series T08-VA0.x/VA1.x, VA2.0-2.2 T08-VA1.x and of the RoughCam Series T10-VA0.x/VA1.x, VA2.0-2.2
Compatible products:
Ex/RoughCam IPP1275, Ex/RoughCam IPM3016, Ex/RoughCam IPP1280, Ex/RoughCam XI80, Ex/RoughCam e.Vario, Ex/RoughCam miniTube, Ex/RoughCam miniTube IP, Ex/RoughCam microTubeIP, Ex/RoughCam IPM2036, Ex/RoughCam IPQ1715
Ex/RoughCam liteServer

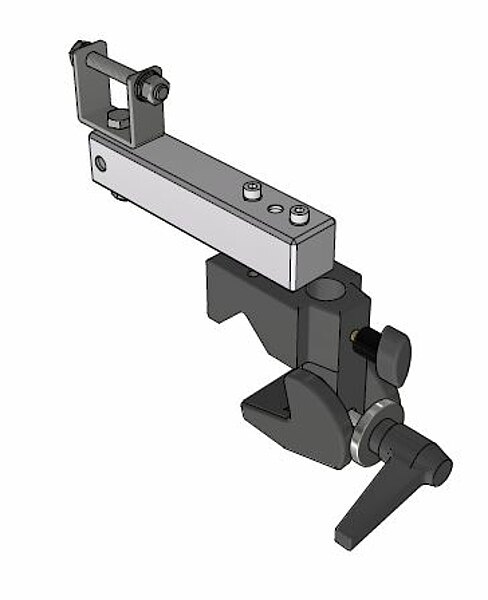

Mechanical Characteristics:
Material: Stainless Steel (AISI 316L/1.4404), Aluminum
Weight: 0.82 kg
Dimensions: 254x161x97 mm
With a point load of up to 15 kg, the SuperClamp holds onto pipes, tripods or protrusions with a diameter of 13 mm to 55 mm and can be used at temperatures between -30°C and +60°C.
Included Accessories:
including Mounting material, suitable hinge attachment for VA0.x/VA1.x or VA2.0-2.2
